Pentair FNS-Plus Filter Parts

FNS Plus Filters are designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. The internal design has been refined to minimize flow restrictions and, therefore, requires minimal pumping power to achieve a needed flow rate. This vertical-grid, D.E. filter is made of fiberglass-reinforced polypropylene for superior strength and reliability.

1	190058	Pressure gauge
2	98209800	High Flow manual relief valve
4	071404	Nut wing
5	59000800	Tie rod, 24 sq. ft. filter
	59001500	Tie rod, 36 sq. ft. filter
	59002100	Tie rod, 48 sq. ft. filter
	59002700	Tie rod, 60 sq. ft. filter
6	59023700	Manifold, top w/air bleed
7	190092	Internal air bleed assembly
8	98725800	Template, filter
9	59001100	Grid, full FNS 24, 12 in., 7 req.
	59001800	Grid, full FNS 36, 18 in., 7 req.
	59002400	Grid, full FNS 48, 24 in., 7 req.
	59003000	Grid, full FNS 60, 30 in., 7 req.
10	59001000	Grid, partial FNS 24, 12 in., 1 req.
	59001700	Grid, partial FNS 36, 18 in., 1 req.
	59002300	Grid, partial FNS 48, 24 in., 1 req.
	59002900	Grid, partial FNS 60, 30 in., 1 req.
11	59023800	Assembly, element grid, complete, 24 sq. ft. filter
	59023500	Assembly, element grid, complete, 36 sq. ft. filter
	59023400	Assembly, element grid, complete, 48 sq. ft. filter
	59023300	Assembly, element grid, complete, 60 sq. ft. filter
12	98211400	Nut ,1/4-20, plated brass
13	59000500	Spider, grid locator
14	58001000	Nut, lock, hex, nylon
15	39010200	O-ring tank clamp, .470 O.D.
16	190003	Clamp kit
17	53006300	Washer, .325 i.d. for filter clamp
18	53108900	Spring/barrel nut assembly
19	190034	Assembly, standpipe, outlet, 4-3/8″ tall
	190035	Assembly, standpipe, outlet, 10-3/8″ tall
	190036	Assembly, standpipe, outlet, 16-3/8″ tall
	190037	Assembly, standpipe, outlet, 22-3/8″ tall
20	86006900	O-ring, bulkhead
21	271096	Bulkhead union kit
	270100	Adaptor kit 2 in. Black
22	190043	Assembly, pipe, inlet, includes bulkhead
23	51005000	O-ring for drain plug**
	191474	O-ring for drain plug***
24	86202000	Plug, 1-1/2 in. drain with O-ring
	190030	Cap plug***

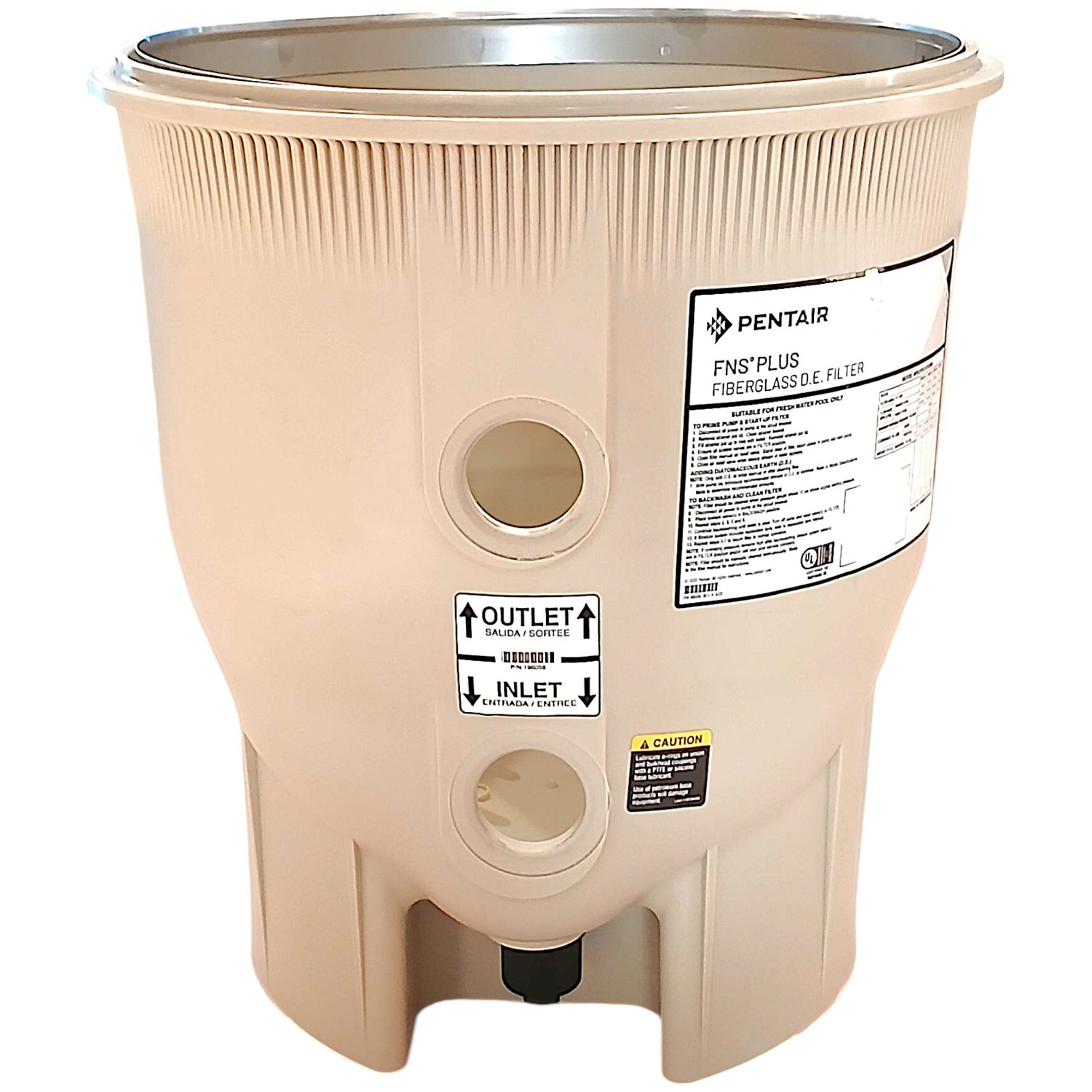

25	170015	Tank bottom, assembly, 24 sq. ft. filter
	170016	Tank bottom, assembly, 36 sq. ft. filter
	170017	Tank bottom, assembly, 48 sq. ft. filter
	170018	Tank bottom, assembly, 60 sq. ft. filter
26	170019	Tank lid, 24 sq. ft. filter
	170020	Tank lid, 36 sq. ft. filter
	170021	Tank lid, 48 sq. ft. filter
	170022	Tank lid, 60 sq. ft. filter
27	59000600	O-ring, bulkhead
28	192320	O-ring 2-137 Buna N70SH*
	86006900	O-ring, bulkhead**
29	190141	Bulkhead, 2 in. with O-ring**
30	195339	SS back-up ring ****
*	Used on filters manufactured before 10/04
**	Used on filters manufactured after 10/04
***	Used on filters manufactured after 5/21/05
****	Used on filters manufactured after 2/03
